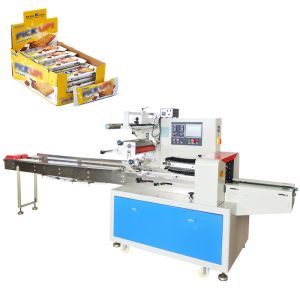

Continuous Sealing Automatic Multi-Function mask Pillow Type Packer flow packing machine
Facture:
1.Double transducer control, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and saving films
2.human-machine operation, convenient and quick parameter setting.
3. Self diagnosis failure function, clear failure display.
4.High sensitivity optical electric color mark tracking &digital input cut position which makes the sealing&cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
FAQ
Q1: What kind of after sell service do your company have?
A: For small equipment, we have operation instructions and installation guidance video, and customers can provide video connection guidance after receiving the equipment; for large equipment, we have professional installation and debugging engineers for on-site installation and debugging and training
Q2: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
Suitable for packaging biscuit, chocolate, bread, vermicelli, instant noodles, moon cakes, medicine, daily necessities, industrial supplies, paper boxes, paper towels, trays, towels, egg rolls, preserved fruits, hawthorn slices, sausages and other sticky or bulk products, etc.
Specifications:
| Model | SN-250D/350D/450D |
| Packing film | composite |
| Packing Speed | 30-120bags/min |
| Packing Size | L*W 65-330mm*30-110mm |
| Power Supply | 220 50/60Hz |
| Power | 2.5KW |
| Machine size | 4300x2100x1800mm |
| Feeder | 4400*2200*1900mm |
| Machine Weght | Approx 550kg |
| Degree of automation | Automatic |
| Processing customization | Customized processing is available |
| Material Type | Solid |
| Applicable objects | Gifts, crafts, food, clothing, home textiles, chemicals, toys, restaurants, daily chemicals, pharmaceuticals, hardware, machinery |
Machine Details:
| 1. Packaging machine appearance It can realize the one-step process of material release, packaging and sealing and cutting |  |
| 2.Linkage film winding Adopt multi-linked film rolls to coordinate film link, adapt to more rolled film materials. The rolled film is smoother and more effective in preventing the upper rolled film from running off. |  |
| 3. Conveyor device Stainless steel operating platform cassette positioning conveyor belt device |  |
| 4.Fully automatic sealing and cutting The sealing and cutting shrinkage is completed in a single pass, realizing unmanned automatic operation. |  |
| 5. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time |  |
| 6. Packing neat and good looking |
|
